Flush Door Construction

Flush MDF Door Construction

The super-refined MDF used in TruStile MDF doors provides a smooth paintable surface. A highly engineered core provides stability for the door while the patented Wedge Edge® provides a secure mount for hardware.

Specification
Description
Thickness
1-⅜", 1-¾" & 2-¼"
Maximum Size
48" × 120"
Core
Laminated strand lumber (LSL) core with poplar Wedge Edge®
Face
Super-refined MDF
Options
20-, 45-, 60- and 90-minute rating
Refer to fire door section of our website for details
Warranty
Life of original installation
See our website for complete warranty details
Factory Finish
Low VOC primer
sample flush <DF> door cross section

1-¾” Flush MDF door cross section

Super-Refined MDF

LSL Core

Poplar Wedge Edge

Flush MDF Door Cross Sections

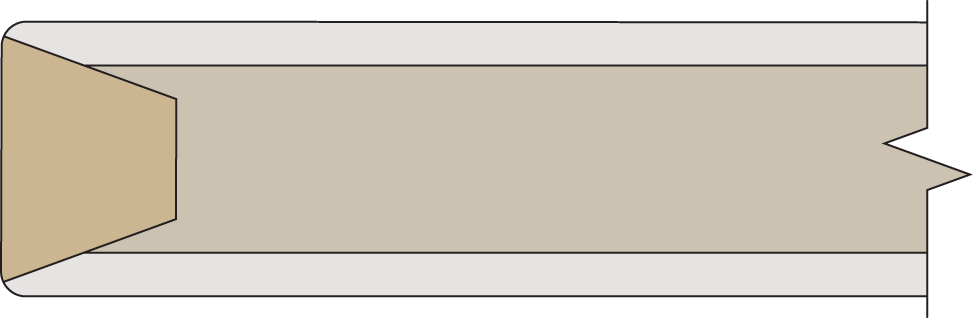

1-⅜" Flush MDF Door Cross Section

1-⅜" Flush MDF Door Cross Section

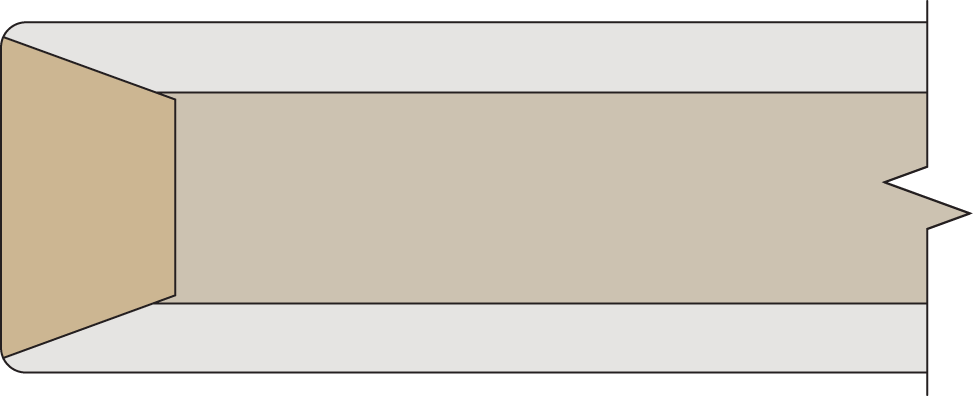

1-¾" Flush MDF Door Cross Section

1-¾" Flush MDF Door Cross Section

1-¾" Flush MDF Door with Glass Cross Section

1-¾" Flush MDF Door with Glass Cross Section

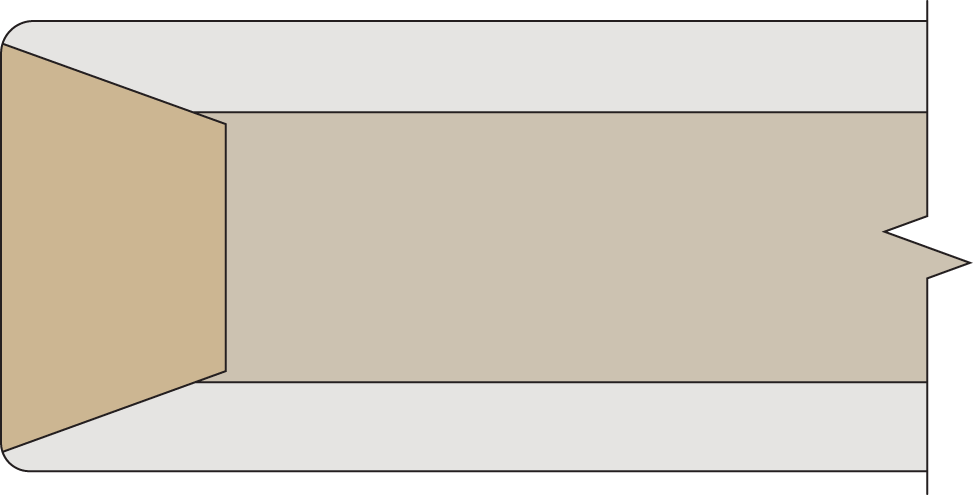

2-¼" Flush MDF Door Cross Section

2-¼" Flush MDF Door Cross Section

2-¼" Flush MDF Door with Glass Cross Section

2-¼" Flush MDF Door with Glass Cross Section

Flush Wood Door Construction

TruStile flush wood doors feature hand-selected veneers, precision matched to optimize the beautiful character found across each species of natural wood.

Distinguishing Features:

  • Hand matched 1⁄16" veneers available in horizontal and vertical grain
  • Highly engineered core provides stability for the door, while the matching hardwood edge provides a beautiful finish
Specification
Description
Thickness
1-¾", 2-¼" (not available in 1-⅜")
Maximum Size
48" × 120"
Matching for Pairs
Pair Matching Standard
Stiles
⅝" wood laminated to ¾" laminated strand lumber (LSL)
Rails
⅝" wood laminated to ¾" laminated strand lumber (LSL)
Core
HDF-faced laminated strand lumber (LSL) core
Face
1⁄16" wood veneer
Options
20-, 45-, 60- and 90-minute rating
Refer to fire door section of our website for details
Notes
Doors under 80" tall will not have bottom lumber band
Warranty
Life of original installation
See our website for complete warranty details
Factory Finish
Standard stains
Custom color match available

Flush wood door cross section
1-¾", 2-¼" (not available in 1-⅜")

1⁄16” Veneer Face

⅝” Hardwood Lumber Bands

¾” LSL Cross Band

HDF Backer

LSL Core

Flush Wood Door Cross Sections

1-¾" Flush Wood Door Cross Section

1-¾" Flush Wood Door Cross Section

1-¾" Flush Wood Door with Glass Cross Section

1-¾" Flush Wood Door with Glass Cross Section

2-¼" Flush Wood Door Cross Section

2-¼" Flush Wood Door Cross Section

2-¼" Flush Wood Door with Glass Cross Section

2-¼" Flush Wood Door with Glass Cross Section
