solid flush wood interior doors with wide horizontal and narrow hinge vertical grain pattern

    TMF1001

    solid flush wood interior doors with wide horizontal and narrow hinge vertical grain pattern

    solid flush wood interior doors with wide horizontal and narrow hinge vertical grain pattern

Diagrams

TMF1001

Contemporary

Application:  Interior

Available Type:

Series:  Tru&Modern Flush (TMF) Series

Thickness:  1-3/4" 2-1/4"

Available Fire-Rating:

Fire-rated doors may require modified construction depending on rating.
Contact TruStile or your TruStile Representative for details.

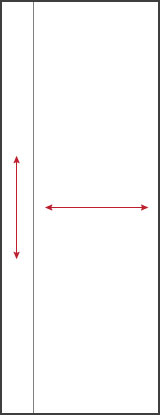

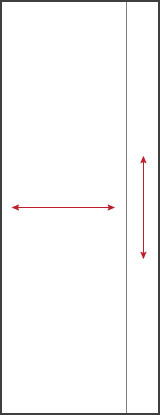

Note:  Sketch face pattern is reversible. Arrows indicate direction of wood grain.

Profiles
Materials

Wood for Stain-Grade Applications

Cross section of TruStile Reserve wood door



TruStile offers the broadest selection of wood species on the market. Choose from our standard selections below, or custom order virtually any species. Our standard wood species are available with FSC® certified wood.

  • Knotty Alder Knotty Alder
  • Select Alder Select Alder
  • Bamboo BambooTruStile Reserve only
  • Birch Birch
  • Cherry Cherry
  • Douglas Fir Douglas FirVertical grain
  • Detail of hickory with clear coat finish HickoryCan display dramatic variations in color and grain not apparent in photo
  • Laminated Veneer Lumber (LVL) LVLTruStile Reserve only
  • African Mahogany Mahogany
  • Sugar Pine Clear Pine
  • Poplar
  • Plain Sawn Red Oak Plain Sawn Red Oak
  • Quarter Sawn Red Oak Quarter Sawn Red Oak
  • Rift Sawn Red Oak Rift Sawn Red Oak
  • Walnut WalnutWill lighten in color in high UV applications
  • White Maple White MapleProne to checking and cracking in dry environments
  • Plain Sawn White Oak Plain Sawn White Oak
  • Quarter Sawn White Oak Quarter Sawn White Oak
  • Rift Sawn White Oak Rift Sawn White Oak
  • Wire-Brushed Douglas Fir Wire Brushed Douglas FirTruStile Reserve only. Vertical grain.
  • Wire-Brushed Pine Wire-Brushed Clear PineTruStile Reserve only.
  • Wire-Brushed Red Oak Wire-Brushed Red OakTruStile Reserve only. Plain sawn only.
  • Wire-brushed plain sawn oak Wire-Brushed White OakTruStile Reserve only. Plain sawn only.
Glass Inserts
