TruQuote Updates - July 2019

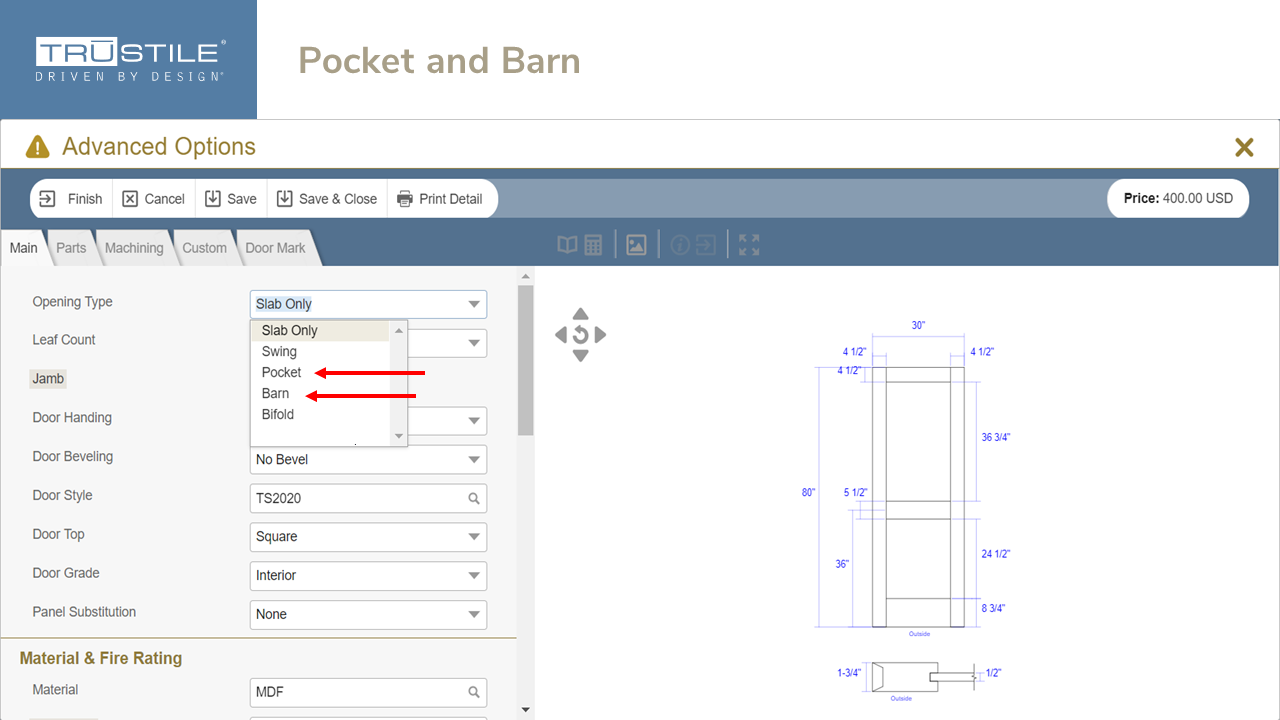

New Opening Types:

1. Pocket: This opening type is for doors that will be placed into pocket applications.
2. Barn: This opening type is for doors that will be placed into barn door applications.

Previously Announced:

1. Sliding: This opening type will remain in place but should only be used for sliding door applications that are not Pocket or Barn door applications.
2. Slab Only: This opening type is designed for doors that do not require factory machining. As such, this Opening type is limited to doors that are full and square, bevel both sides or bevel one side. Pre-fit options will continue to be available for Slab Only doors. Slab Only will be the default opening type when you start a new quote.
3. Swing: Swing should be selected if you require a machined door slab from TruStile or a pre-hung or knocked down jamb unit with your door. Selecting “Swing” will enable all machining and pre-hanging options for your door.

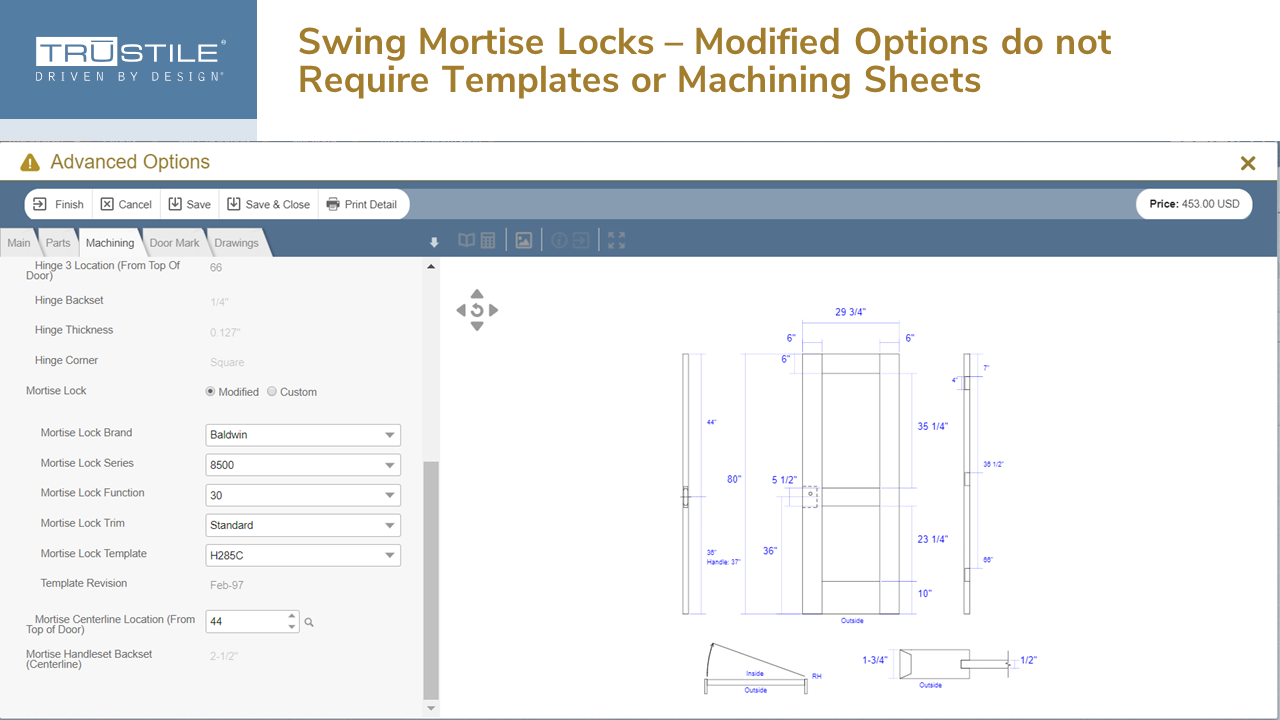

New Standard Mortise Lock Preps for Swinging Doors:

Some popular Mortise Lock preps, including Baldwin and Accurate, are now available as modified machining options for Swinging Doors.

Key Features:

• Baldwin 8500 and Accurate 9000, 9100 and 9800 can now be selected as “modified” machining options and do not require templates or machining sheets.
• Other mortise lock preps from Corbin Russwin, Dorma, Sargent and Schlage are also available.
• When selected, the outline of the mortise box and the handle height location is added to the drawing to help verify the proper location of each.

Note: Swing mortise locks require 1″ wider stiles than pocket mortise locks

New Pocket Door Machining and Jamb Options Available Through the Pocket Door Opening Type:

By dedicating a new opening type to Pocket Doors, the following new features are available.

Key Features:

• When Pocket is selected, LVL stiles are automatically added.
• Selecting a Pocket opening enables standard machining options for both Emtek and Baldwin pocket mortise locks, edge pulls, and flush pulls.
• For other lock preps, there is an easy custom machining process also available through your TruStile Account Manager.
• New machining detail drawing.
• Added Pocket Handing drawings&thinsp— handing will not be required for Pocket doors but can be helpful for machined doors with asymmetric stiles.
• It is now an option to prep for a bottom guide or popular Pemko auto door bottoms.
• A warning when selecting moulding that protrudes out from the face of the door on Pocket door openings
• Easy to order a Flat Jamb Kit that can be trimmed or ripped in the field for split jambs.
• If you order a jamb kit with a pocket door, it will automatically be sized for your door width. However, if you want to customize the jamb width or height to account for your jamb/door backset, TruQuote now has the following three options:
  • Ability to customize the lock jamb/door backset to specify the distance from the inside of the lock jamb to the edge of the door
  • Ability to customize the pocket jamb/door backset to specify the distance from the inside of the pocket jamb to the edge of the door
  • Ability to customize head jamb/door backset to specify the distance from the inside of the head jamb to the top of the door.

New Barn Door Machining and Jamb Options Available Through the Barn Door Opening Type:

By dedicating a new opening type to barn doors, the following new features are available.

Key Features:

• When Barn is selected, LVL stiles are automatically added.
• Standard machining options for both Emtek and Baldwin flush and edge pulls.
• Option to prep for Top hangers, Face Hangers and Bottom Guides.
• Added Barn Door Handing drawings when applicable.
• Easy to order Flat Jamb Kit that can be trimmed in the field
• Added Barn Door Handing drawings.
• Easy to order Flat Jamb Kit that can be trimmed in the field.
• If you order a jamb kit with a barn door, it will automatically be sized for your door width. However, if you want to customize the jamb width or height to account for your jamb/door backset, TruQuote now has the following two options:
  • Door Opening Width Offset: Allows you to undersize jamb width to account for door overlap of the door opening
  • Head jamb/door backset: Allows you to undersize jamb height to account for door overlap of the door opening
• Easy custom machining process available with Account Management assistance.
• New machining detail drawing.

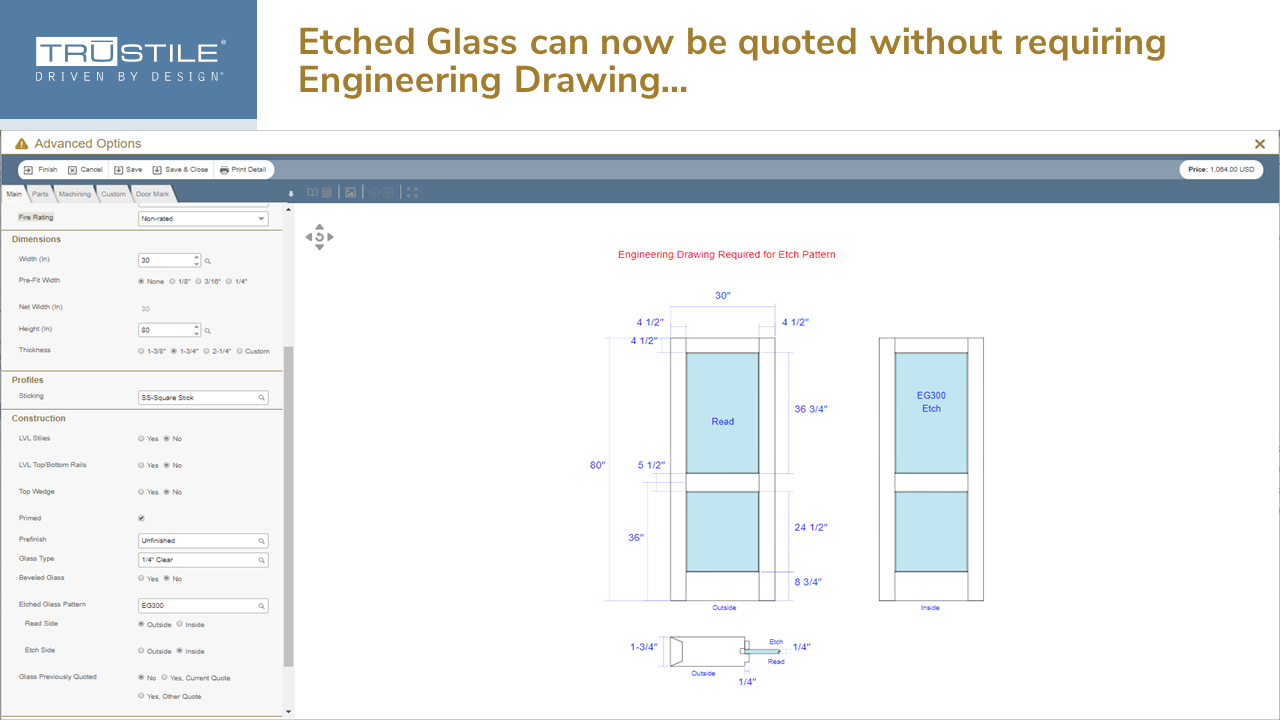

Etched Glass Update:

TruStile has updated the etched glass process to allow for easier quoting.

Key Features:

Quoting on etched glass can be completed without an engineering drawing

NOTE: You will need a completed drawing at the order stage.

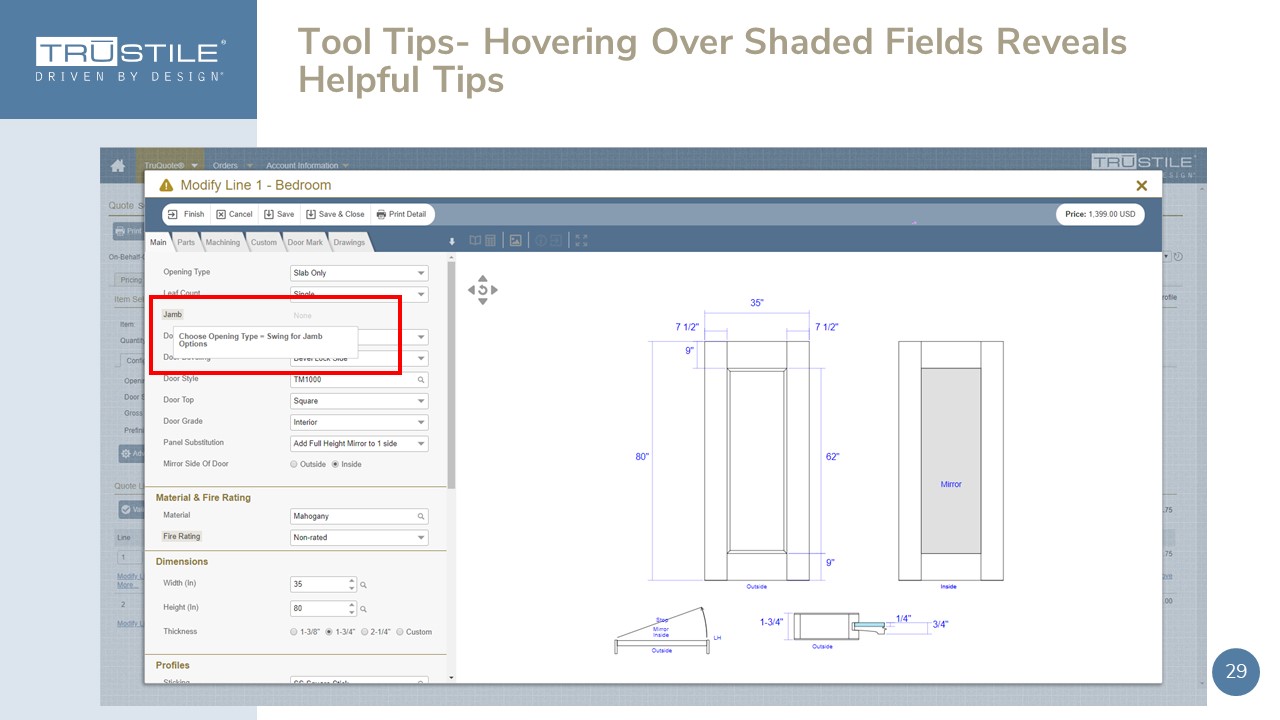

REMINDER: Helpful “Tool Tips” Have Been Added to Provide Helpful Tips with TruQuote:

To help direct users with more information in TruQuote, Tool Tips have been added to certain fields when more information is needed. The Tool Tip will appear when you mouse over a TruQuote field. As shown in this example, if a user has selected an Opening Type of Slab Only, the Jamb Field will provide a Tool Tip that directs users to select an Opening Type of “Swing&rd” to obtain Jamb Options.
